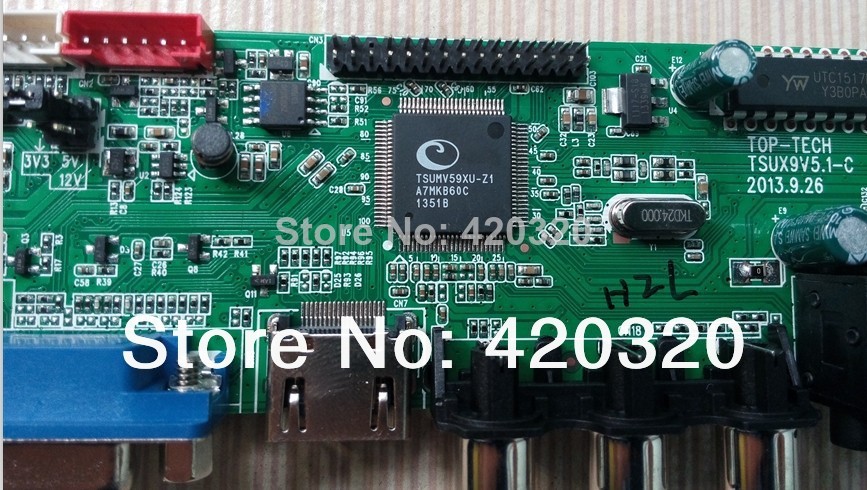

How to make TV. Retro console and computer. How to make 20' HP TV. Site owners rem zibi. Page authors rem zibi November 19, This board on picture have new updated TV tuner with R chip, so it use new firmware software package must have in name "R" , if is used firmware for old type of board, then TV tuner not works at all.
With new firmware for R, TV works surprisingly clean and nice, with analog channels of cable network. After some testing, with new firmware package, looks like this board supports a big number of screens, resolutions and LVDS types. It have switchable 4 aspect ratios as 4: To access "service menu" please open Menu and then type from remote control - that all , you are in "service menu".
Remote control have more buttons as there is ability to play from USB source movies, music and pictures. In fact, movies are played well with good sound, in some codecs, player do not recognize sound track, so few movies was silent. So, always consider and think twice before buy any board, choose seller fully supporting latest firmware files for his board, if he is not - simply DO NOT buy , because you will have useless piece of junk.
You can buy controller from shop recommended on this webside, the firmwares for download are correct and work well with them. That means, device detect That little odd but works.
So, if you plan a mostly to use HDMI , look for screens with native What if you have Press MENU and type to enter into "Service Menu" , in this menu find "Overscan", you can made picture wider and then center and a bit flattened and also centered , helps using testing picture of So, by this way, is possible to get picture with proper geometry, like in There are also many other options, if you are interested, then look and test them by yourself.
If you mess the settings, always you can made "factory reset". Notice that 5 keys or 7 keys are possible to use with board so also firmware must be for 5 or 7 keys mode. Keyboard can be easily done on universal prototyping board, using microswitches and wires. In such case we connect only GND and K0 input for keys. That work with 7 and 5 keyboard style.
Each function is determined by proper resistor connected in series with switch, as follow:. Looks like there are two types of V59 boards, both works well with analog TV channels but needs different firmwares. There is not firmware support for other laptop's typical However, I was able to find firmwares for I hope to find a bigger firmware package, for particular remote control with bigger support of resolutions.
Firmwares are described as 7 key keyboards but it works also with 5 key keyboard. You can change connected keyboard type, 7 or 5 keys, in "Service Menu". TV tuner looks like on picture below, made on chip R or R - Warning - needs different firmwares. However, still missing some rare types, still available in NEW V29 controller version. So I recommend before buy, contact seller and be sure what kind of tuner you need and ask for it.
There are available now "new" boards model: So before buy of this V56 , always check if your screen type is supported in firmware pack.
Beware of buying similar looking boards but without full firmware support from unverified sellers, or not providing proper firmware pack. This is for example board named as VST Similar problem is with board named VST So, always consider and think twice, before buy any board, choose seller fully supporting latest firmware files for his board, if he is not - simply DO NOT buy, because you will have useless piece of junk. You can buy controller from shop recommended on this web-side, the firmware for download are correct, tested and works well with them.
Programming is very simple, we must choose proper. Flashing is easy and work reliable, more time consuming to choose proper. There was reports about some pen-drives not working with board, as solution simply change pen-drive to other brand. To do that, we must unsolder flash chip from board, put it into programmer and program the. After program, resolder chip in his place at board, the controller will become live, so is possible to start programming again.
How to start 2. How to make TV b. Retro console and computer 6. How to make 20' HP TV 7. Links Sitemap Site owners rem zibi Page authors rem zibi November 19, visitors map.
So that is the biggest screen support I ever seen. HDMI input recognize in proper way only aspect ratio Well, there is sophisticated solution: Each function is determined by proper resistor connected in series with switch, as follow: I have not idea about this chip ability, but with new software it works well as analog TV.
It looks like it is matter of luck or no luck , what type of TV tuner you will got. WARNING Beware of buying similar looking boards but without full firmware support from unverified sellers, or not providing proper firmware pack. Possible problems In progress.
